Container updates with n8n + Gitea

date:

tags: containers docker n8n gitea

categories: Containers

I have tried many tools to manage containers. I keep coming back to Docker for the user experience. If you are not familiar with containers or Docker, check out a post for an introduction. While most containers in my homelab are now in Kubernetes, I still manage some containers with Docker compose. My DNS servers are 2 Raspberry Pi with a VM as 3rd DNS server. They also have reverse proxy servers deployed as containers (like nginx, caddy, etc.). So I built a workflow to manage those as containers. I do not want these DNS servers to be part of the k8s cluster and I want them to be able to start up without having dependencies on an external system. I want to have a functioning network if there is 1 DNS server online or all 3 are online. I am using Adguard Home to manage DNS queries in my Homelab.

I’m going to set up a workflow to automatically deploy Docker Compose apps when changes are pushed to the main branch of a self-hosted Gitea repository. To do this, I am going to use an open source tool n8n. Check out a previous post for a less complicated introduction to n8n.

n8n workflow Setup Instructions:

Note: This workflow is tailored to my setup so the n8n UI may change slightly but I believe this guidance should you want to create a similar workflow.

1. Set Up SSH Access on Remote Server

On your Docker server, create a deploy user with Docker permissions:

# Create deploy user
sudo useradd -m -s /bin/bash deploy

# Add to docker group
sudo usermod -aG docker deploy

# Create deployments directory or use an existing
sudo mkdir -p /opt/deployments
sudo chown -R deploy:deploy /opt/deployments

2. Generate SSH Key Pair

On your n8n server (or locally):

ssh-keygen -t ed25519 -C "n8n-deploy" -f ~/.ssh/n8n_deploy_key

Copy the public key to your remote server:

ssh-copy-id -i ~/.ssh/n8n_deploy_key.pub deploy@your-docker-server.com

The other way is to put the value of the public key in this file on the deploy user’s home dir: ~/.ssh/authorized_keys

The private key will be need to be added to n8n.

3. Configure n8n SSH Credentials

In n8n:

  • Go to Credentials → Add First/New Credential
  • Select/search for: SSH Private Key
  • Name it: SSH Deploy Key or for specific hosts, $hostname ssh deploy key
  • Paste your private key content from ~/.ssh/n8n_deploy_key
  • Save it

4. Create Workflow

This next step is to create the workflow. Here I am using Discord notifications at the end but that could just as easily be swapped for Slack.

Create a new workflow in n8n and add the following nodes:

a. Webhook Node

  • Add a Webhook node
  • Set HTTP Method to POST
  • Set Path to gitea-webhook
  • Set Respond to “Using ‘Respond to Webhook’ Node”

b. IF Node - Check Main Branch

  • Add an IF node
  • Set Value 1 to {{ $json.body.ref }}
  • Set Operation to “Equals”
  • Set Value 2 to refs/heads/main

c. Respond to Webhook - Ignored

  • Add a Respond to Webhook node connected to the FALSE output
  • Set Respond With to “JSON”
  • Set Response Body to: {{ { "status": "ignored", "message": "Not main branch", "branch": $json.body.ref } }}

d. SSH Node - Update Repository

  • Add an SSH node connected to the TRUE output
  • Select your SSH credential
  • Set Command to: cd /opt/containers && ./update-containers.sh || exit 1
  • Set Working Directory to /home/deploy

e. IF Node - Check Success

  • Add another IF node
  • Set Value 1 to {{ $json.code }}
  • Set Operation to “Equals” (number)
  • Set Value 2 to 0

f. Discord Node - Success (Optional)

  • Add a Discord node connected to the TRUE output
  • Set Content to: Docker n8n deployment completed successfully from Gitea repo: {{ $('Check Main Branch').item.json.body.repository.full_name }}

g. Discord Node - Failure (Optional)

  • Add a Discord node connected to the FALSE output
  • Set Content to: **ERROR:** Docker n8n deployment failed from Gitea repo: {{ $('Check Main Branch').item.json.body.repository.full_name }}\n\nSee output:\n{{ $('SSH: Update Repository').item.json.stderr }}

5. Set Up Gitea Webhook

In your Gitea repository:

  • Settings → Webhooks → Add Webhook → Gitea
  • Target URL: Your n8n webhook URL
  • HTTP Method: POST
  • Content Type: application/json
  • Trigger On: Push events
  • Save

Make sure that you configure Gitea to allow a webhook connection from n8n. There is an env var ALLOWED_HOST_LIST that you need to update to use webhooks.

6. Test the Deployment

Test the webhook by using the “Test Delivery” button in the Gitea webhook settings. N8n has a test webhook endpoint that can also be used to play around with the workflow before you activate the workflow for “production”.

Activate the workflow and push a change to your main branch when everything looks good.

What This Workflow Does:

  1. Receives webhook from Gitea on push
  2. Checks if main branch (ignores other branches)
  3. Runs deployment script via SSH (./update-containers.sh)
  4. Checks exit code to determine success or failure
  5. Sends Discord notification with deployment status
  6. Responds to Gitea with appropriate status

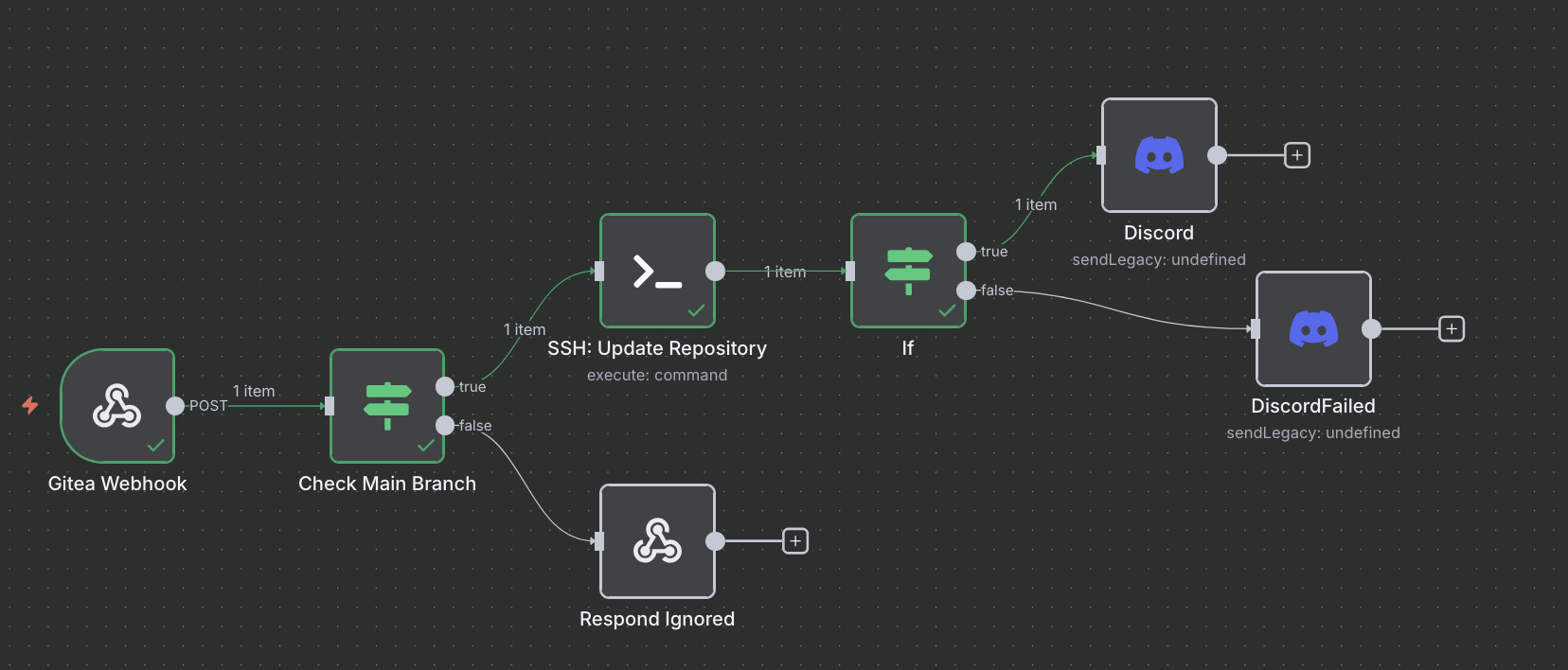

n8n_docker_workflow
n8n_docker_workflow

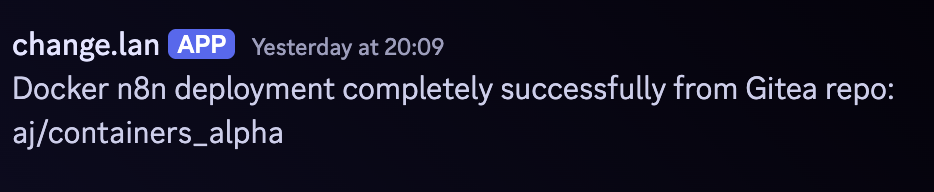

Discord notifications are optional. Success notifications can be disabled if too noisy. Here is an example notification in a channel. Slack would use a similar format:

n8n_docker_workflow_discord
n8n_docker_workflow_discord

Update container script

Instead of having n8n or another system run a bunch of commands, here is a bash script that will pull changes from git remote origin and update each docker compose file in a single step. The script assumes we start in a top level directory and that each docker compose stack is a sub-directory with a yaml file.

Assuming that we put our git repo in /opt/containers, create a script in the git repo update-containers.sh to match the invocation in the n8n SSH command step.

#!/usr/bin/env bash

set -euo pipefail
shopt -s nullglob

ROOT_DIR="$(cd "$(dirname "${BASH_SOURCE[0]}")" && pwd)"
cd "${ROOT_DIR}"

echo "Updating repository..."
git pull --ff-only

for compose_file in "${ROOT_DIR}"/*/docker-compose.yml; do
  svc_dir="$(dirname "${compose_file}")"
  svc_name="$(basename "${svc_dir}")"
  echo
  echo "Running docker compose for ${svc_name}..."
  (
    cd "${svc_dir}"
    docker compose pull
    docker compose up -d
  )
done

echo
echo "Deployment complete."

This script can be executed on the terminal or by n8n.

Additional Tips:

For private Gitea repositories, add a deploy key on the remote server to facilitate the git pull command in the SSH deployment.

ssh deploy@your-docker-server.com
ssh-keygen -t ed25519 -f ~/.ssh/gitea_deploy
cat ~/.ssh/gitea_deploy.pub

Add the .pub (public key) to Gitea repo → Settings → Deploy Keys

Test SSH connection from n8n:

ssh -i ~/.ssh/n8n_deploy_key deploy@your-docker-server.com

Multiple servers? Duplicate the workflow and change the host in each SSH node to deploy to different servers.
